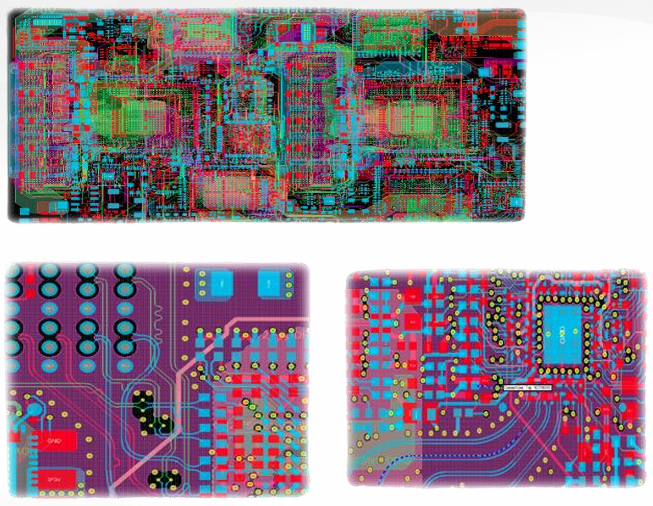

Case Study 1 – 10G Ethernet Line Card

SCOPE OF THE PROJECT​​ ​Schematic Drafting, Placement, Routing and CAM validation
Key Component ​ Processors, SFP PHY, Giga bit Ethernet devices, 10 DDR3 memory device, PCIe connector’s, High,Transla
Technology XAUI, DDR3 , SRIO, Gigabit Ethernet, PCI switch , SFP+, Frequency: 12 Gbps, DDR3 ‐ 800 MHz, Blind and Buried via Technology​
Board Size​ 180X 160 mm ​
Layer Count​ 20 Layers​
Total Components​ 3500+ , 9000+ connections​
EDA Tool Set ​ OrCAD Schematic, Allegro PCB Editor, Allegro PCB SI​
